Ring valves
The ring valves are designed for reciprocating compressors with an average speed of rotation of the crankshaft.
Limiter
lifting
Rings
Valve
seat

Springs
Magnetic valve
Magnet

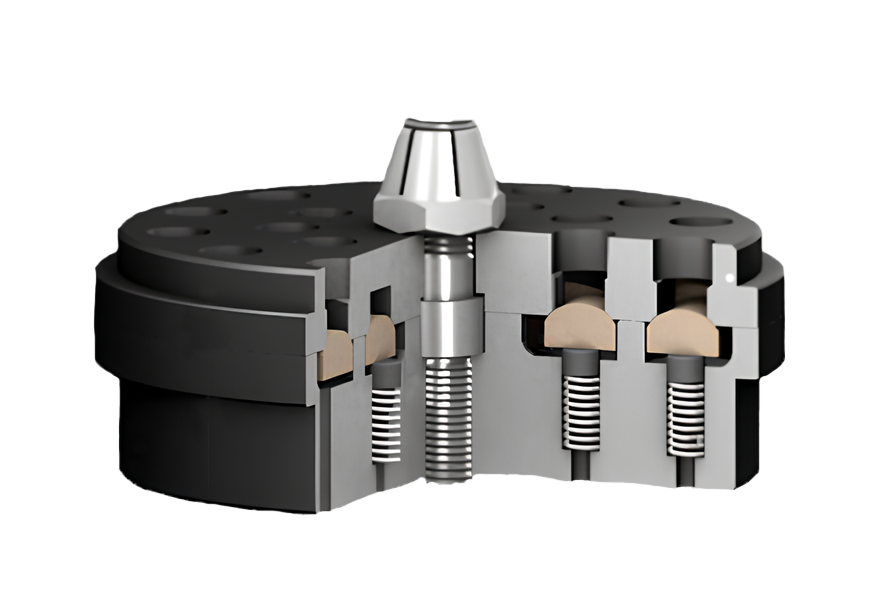

The device of the spring ring valve
Magnet
Ограничитель
подъёма

  • Construction
    The shut-off rings of the valve are made of steel, titanium, polymers, with a cross-section shape optimal for efficient operation. The compression mechanism of the annular valve can be either magnetic or spring-loaded.
  • Technical specifications
    • Compressed medium – air, gas
    • Compressor speed up to 1000 rpm
    • Operating temperature up to 200 ° C
    • Pressure drop up to 20 MPa
    • Discharge pressure up to 40 MPa
  • Advantages
    • The service life is up to 25,000 hours
    • Performance improvement
    • Lowering the discharge temperature
    • Efficiency in polluted environments
    • Ease of assembly and disassembly of the valve
